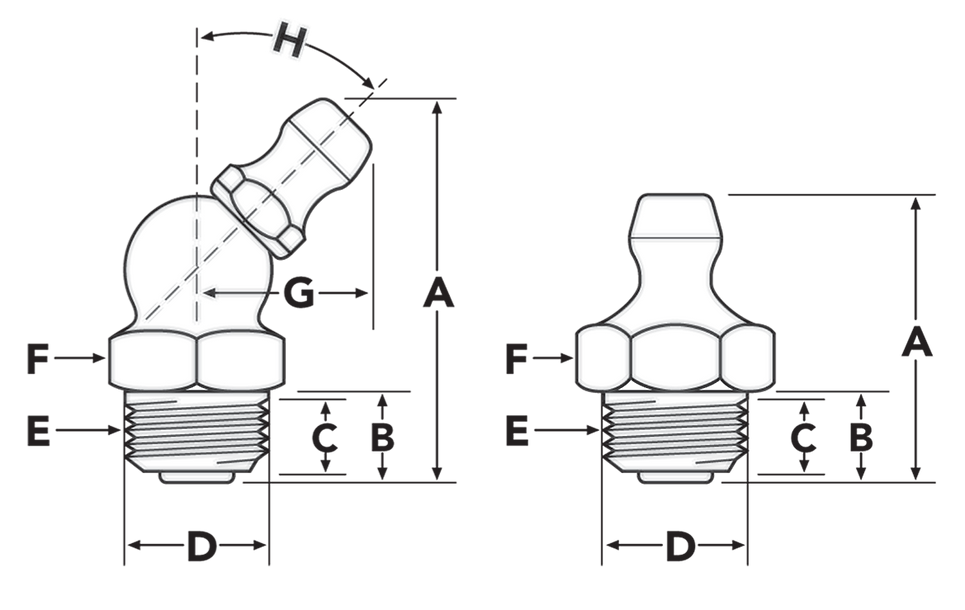

Fittings Diagram.png

Fittings

SAE  Fittings

5 Pack
10 Pack
Box 50
Box 100
Box 1000
Description
A
B
C
D
E
F
G
H
-
11-151
-
11-150
-
1/8" NPT Straight Grease Fitting
21/32
9/32
3/16
13-32
1/8 PT
7/16
-
-
11-159
-
-
11-218
-
1/8" NPT 45 degree Grease Fitting
55/64
19/64
7/32
13/32
1/8 NPT
7/16
29/64
45 degree
11-167
-
11-166
-
-
1/8" NPT 90 degree Grease Fitting
27/32
19/64
7/32
13/32
1/8 NPT
7/16
1/2
90 degree
11-201
-
-
11-226
-
1/4" NPT Straight Grease Fitting
7/8
27/64
5/16
17/32
1/4 NPT
9/16
-
-
-
11-101
-
11-100
11-103
1/4"-28 Short Straight Grease Fitting
35/64
13/64
7/64
1/4
1/4-28 SAE-LT
5/16
-
-
-
11-105
-
11-104
-
1/4"-28 45 degree Grease Fitting
13/16
13/64
9/64
1/4
1/4-28 SAE-LT
3/8
13/32
45 degree
-
11-113
11-112
-
-
1/4"-28 90 degree Grease Fitting
3/4
13/64
5/32
1/4
1/4-28 SAE-LT
3/8
1/2
90 degree

Metric Fittings

5 Pack
Description
A
B
C
D
E
F
G
H
11-301
6 mm Straight Grease Fitting
39/64
15/64
5/32
15/64
6 MM - 1P
7 MM
-
-
11-305
6 mm 90 degree Grease Fitting
47/64
13/64
5/32
15/64
6 MM - 1P
9 MM
1/2
90 degree
11-311
8 mm Straight Grease Fitting
21/32
15/64
5/32
5/16
8 MM - 1P
9 MM
-
-
11-313
8 mm 45 degree Grease Fitting
59/64
13/64
5/32
5/16
8 MM - 1P
9 MM
13/32
45 degree
11-315F
8 mm 90 degree Grease Fitting
23/32
13/64
5/32
5/16
8 MM - 1P
9 MM
1/2
90 degree
11-321
10 mm Straight Grease Fitting
21/32
15/64
5/32
25/64
10 MM - 1P
11 MM
-
-

Drive Fittings

10 Pack
Box 1000
Description
A
B
C
D
E
F
G
H
11-447
11-448
1/4" Straight Drive Grease Fitting
35/64
1/4
1/4
11/32
11-447
-
1/4" Straight Drive Grease Fitting
null
null
null
null
null
null
null
null
11-438
-
3/16" Straight Drive Grease Fitting
17/32
1/4
3/16
5/16
11-453
-
5/16" Straight Drive Grease Fitting
35/64
1/4
5/16
3/8

Thread Forming Fittings

Box 1000
Description
A
B
C
D
E
F
G
H
11-432
1/4"-28 Special Taper Drive Grease Fitting
17/32
13/64
1/8
1/4
1/4-28
5/16
-
-

Fitting Kits

SAE Kits

Metric Kits

impact Fitting

Cleaner

Simple to use cleaner for dirty, blocked grease fittings. Includes 6" flexible hose for hard to reach fittings.

11-917 Storage Case. 3/master
